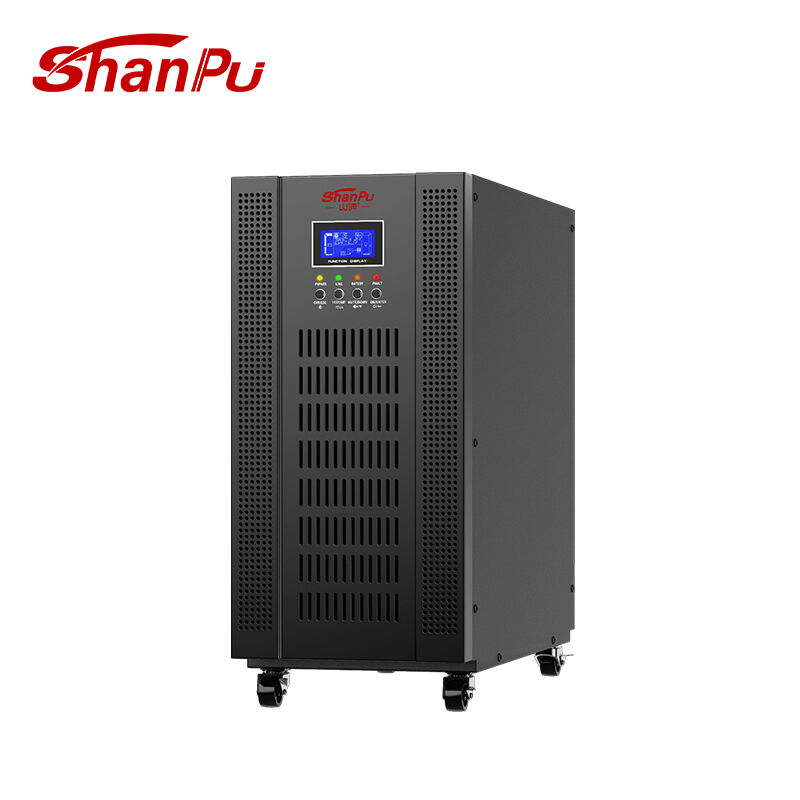

3C3 10KVA-200KVA
-
Realize online double conversion
-
DSP technology ensures high efficiency
-
Output power factor up to 0.8
-
50Hz/60Hz frequency conversion mode
-
Emergency Power Off(EPO) compatible with generators
-
N+X parallel redundancy application (up to 3 units in parallel)
- Optional isolation transformer to ensure stable power output of the system
- Overview
- Related Products
Widely used in network management centers and computers, banks, securities, taxation, communications, postal services, radio and television, public security, transportation, electric power, medical, industrial control, national defense and other important data fields.
|
Model |
3C3 10K(S) | |
|
Phase |
Three-input Three-output | |
|
Capacity |
10KVA 8KW | |
| Input | ||
|
Input voltage |
3×400VAC (3-phase + N) | |
|
Voltage range |
190-520VAC (3-phase + N) @ 50% load 305-520VAC (3-phase) @ 100% load | |
|
Input frequency |
46Hz~54Hz/56Hz~64Hz | |
|
Power factor |
≥0.99@100%load | |
| Output | ||
|
Output voltage |
3×360/380/400/415VAC(3-phase + N) | |
|
AC voltage regulation |
±1% | |
|
Frequency (synchronous range) |
46Hz~54Hz/56Hz~64Hz | |
|
Frequency range (battery mode) |
50Hz±0.1Hz/60Hz±0.1Hz | |
|
current crest rating |
3:1 (Max) | |
|
Waveform balance |
≤2%THD (Linear Load)≤5%THD (Non-linear Load) | |
|
Transfer time |
0ms | |
|
Output waveform |
Pure Sine Wave | |
| Overload | Utility mode | 100-110%@10Min , 110-130%@1Min,>130%@1S |
| Battery mode | 100-110%@30S, 110-130%@10S,>130%@1S | |
|
Parallel capacity |
parallel up to 3 units | |
|
Efficiencies |
||
|
Mains mode |
93% | |
|
ECO mode |
96% | |
|
Battery mode |
90% | |
|
Battery |
||
|
Standard UPS |
Battery model | 12V/7AH |
| Number quantity | 16 | |
| Charging time | 9 hours to 90% full capacity | |
| Maximum charging current | 1A | |
| Charging voltage | 273VDC±1% | |
|
External battery UPS |
Battery model | Depends on the applicant |
| Number of batteries | 16-20 | |
| Maximum charging current | 4A | |
| Charging voltage | 273VDC±1% | |
|
Display instructions |
||
|
LCD |
Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication | |
|
Physical performance |
||
|
Stardard UPS |
Size (MM) | 815*250*826 |
| Weight (KG) | 109 | |
|
External battery UPS |
Size (MM) | 592*250*826 |
| Weight (KG) | 38 | |
|
Usage environment |
||
|
Humidity |
0-95%RH@0-40℃ (No condensation) | |
|
Noise |
< 60 dBA @ 1M | |
|
Control management |
||
|
Smart RS-232/USB |
Be in favor of Supports Windows®2000/2003/XP/Vista/2008, Windows®7/8, Linux,MAC | |
|
SNMP Optional SNMP |
Power management supports SNMP management and network management | |
|
Model |
3C3 20K(S) | |
|
Phase |
Three-input Three-output | |
|
Capacity |
20KVA 16KW | |
| Input | ||
|
Input voltage |
3×400VAC (3-phase + N) | |
|
Voltage range |
190-520VAC (3-phase + N) @ 50% load 305-520VAC (3-phase) @ 100% load | |
|
Input frequency |
46Hz~54Hz/56Hz~64Hz | |
|
Power factor |
≥0.99@100%load | |
| Output | ||
|
Output voltage |
3×360/380/400/415VAC(3-phase + N) | |
|
AC voltage regulation |
±1% | |
|
Frequency (synchronous range) |
46Hz~54Hz/56Hz~64Hz | |
|
Frequency range (battery mode) |
50Hz±0.1Hz/60Hz±0.1Hz | |
|
current crest rating |
3:1 (Max) | |
|
Waveform balance |
≤2%THD (Linear Load)≤5%THD (Non-linear Load) | |
|
Transfer time |
0ms | |
|
Output waveform |
Pure Sine Wave | |
| Overload | Utility mode | 100-110%@10Min , 110-130%@1Min,>130%@1S |
| Battery mode | 100-110%@30S, 110-130%@10S,>130%@1S | |
|
Parallel capacity |
parallel up to 3 units | |
|
Efficiencies |
||
|
Mains mode |
93% | |
|
ECO mode |
96% | |
|
Battery mode |
91% | |
|
Battery |
||
|
Standard UPS |
Battery model | 12V/7AH |
| Number quantity | 16 | |
| Charging time | 9 hours to 90% full capacity | |
| Maximum charging current | 2A | |
| Charging voltage | 273VDC±1% | |
|
External battery UPS |
Battery model | Depends on the applicant |
| Number of batteries | 16-20 | |
| Maximum charging current | 4A | |
| Charging voltage | 273VDC±1% | |
|
Display instructions |
||
|
LCD |
Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication | |
|
Physical performance |
||
|
Stardard UPS |
Size (MM) | 815*250*826 |
| Weight (KG) | 164 | |
|
External battery UPS |
Size (MM) | 592*250*826 |
| Weight (KG) | 40 | |
|
Usage environment |
||
|
Humidity |
0-95%RH@0-40℃ (No condensation) | |
|
Noise |
< 60 dBA @ 1M | |
|
Control management |
||
|
Smart RS-232/USB |
Be in favor of Supports Windows®2000/2003/XP/Vista/2008, Windows®7/8, Linux,MAC | |
|
SNMP Optional SNMP |
Power management supports SNMP management and network management | |
|
Model |
3C3 30K(S) | |
|
Phase |
Three-input Three-output | |
|
Capacity |
30KVA 24KW | |
| Input | ||
|
Input voltage |
3×400VAC (3-phase + N) | |
|
Voltage range |
190-520VAC (3-phase + N) @ 50% load 305-520VAC (3-phase) @ 100% load | |
|
Input frequency |
46Hz~54Hz/56Hz~64Hz | |
|
Power factor |
≥0.99@100%load | |
| Output | ||
|
Output voltage |
3×360/380/400/415VAC(3-phase + N) | |
|
AC voltage regulation |
±1% | |
|
Frequency (synchronous range) |
46Hz~54Hz/56Hz~64Hz | |
|
Frequency range (battery mode) |
50Hz±0.1Hz/60Hz±0.1Hz | |
|
current crest rating |
3:1 (Max) | |
|
Waveform balance |
≤2%THD (Linear Load)≤5%THD (Non-linear Load) | |
|
Transfer time |
0ms | |
|
Output waveform |
Pure Sine Wave | |
| Overload | Utility mode | 100-110%@10Min , 110-130%@1Min,>130%@1S |
| Battery mode | 100-110%@30S, 110-130%@10S,>130%@1S | |
|
Parallel capacity |
parallel up to 3 units | |
|
Efficiencies |
||
|
Mains mode |
93% | |
|
ECO mode |
96% | |
|
Battery mode |
91% | |
|
Battery |
||
|
Standard UPS |
Battery model | 12V/7AH |
| Number quantity | 16 | |
| Charging time | 9 hours to 90% full capacity | |
| Maximum charging current | 4A | |
| Charging voltage | 273VDC±1% | |
|
External battery UPS |
Battery model | Depends on the applicant |
| Number of batteries | 16-20 | |
| Maximum charging current | 12A | |
| Charging voltage | 273VDC±1% | |
|
Display instructions |
||
|
LCD |
Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication | |
|
Physical performance |
||
|
Stardard UPS |
Size (MM) | 815*300*1000 |
| Weight (KG) | 233.5 | |
|
External battery UPS |
Size (MM) | 815*250*826 |
| Weight (KG) | 64 | |
|
Usage environment |
||
|
Humidity |
0-95%RH@0-40℃ (No condensation) | |
|
Noise |
< 60 dBA @ 1M | |
|
Control management |
||
|
Smart RS-232/USB |
Be in favor of Supports Windows®2000/2003/XP/Vista/2008, Windows®7/8, Linux,MAC | |
|
SNMP Optional SNMP |
Power management supports SNMP management and network management | |
|
Model |
3C3 40K(S) | |
|
Phase |
Three-input Three-output | |
|
Capacity |
40KVA 32KW | |
| Input | ||
|
Input voltage |
3×400VAC (3-phase + N) | |
|
Voltage range |
190-520VAC (3-phase + N) @ 50% load 305-520VAC (3-phase) @ 100% load | |
|
Input frequency |
46Hz~54Hz/56Hz~64Hz | |
|
Power factor |
≥0.99@100%load | |
| Output | ||
|
Output voltage |
3×360/380/400/415VAC(3-phase + N) | |
|
AC voltage regulation |
±1% | |
|
Frequency (synchronous range) |
46Hz~54Hz/56Hz~64Hz | |
|
Frequency range (battery mode) |
50Hz±0.1Hz/60Hz±0.1Hz | |
|
current crest rating |
3:1 (Max) | |
|
Waveform balance |
≤2%THD (Linear Load)≤5%THD (Non-linear Load) | |
|
Transfer time |
0ms | |
|
Output waveform |
Pure Sine Wave | |
| Overload | Utility mode | 100-110%@10Min , 110-130%@1Min,>130%@1S |
| Battery mode | 100-110%@30S, 110-130%@10S,>130%@1S | |
|
Parallel capacity |
parallel up to 3 units | |
|
Efficiencies |
||
|
Mains mode |
95% | |
|
ECO mode |
98% | |
|
Battery mode |
93% | |
|
Battery |
||
|
Standard UPS |
Battery model | 12V/7AH |
| Number quantity | 16 | |
| Charging time | 9 hours to 90% full capacity | |
| Maximum charging current | 2A | |
| Charging voltage | 218VDC±1% | |
|
External battery UPS |
Battery model | Depends on the applicant |
| Number of batteries | 16-20 | |
| Maximum charging current | 4A | |
| Charging voltage | 13.65V*N(N=16~20) | |
|
Display instructions |
||
|
LCD |
Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication | |
|
Physical performance |
||
|
Stardard UPS |
Size (MM) | 815*300*1000 |
| Weight (KG) | 250 | |
|
External battery UPS |
Size (MM) | 815*300*1000 |
| Weight (KG) | 82 | |
|
Usage environment |
||
|
Humidity |
0-95%RH@0-40℃ (No condensation) | |
|
Noise |
< 60 dBA @ 1M | |
|
Control management |
||
|
Smart RS-232/USB |
Be in favor of Supports Windows®2000/2003/XP/Vista/2008, Windows®7/8, Linux,MAC | |
|
SNMP Optional SNMP |
Power management supports SNMP management and network management | |
|
Model |
3C3 60K(S) | |
|
Phase |
Three-input Three-output | |
|
Capacity |
60KVA 48KW | |
| Input | ||
|
Input voltage |
3×400VAC (3-phase + N) | |
|
Voltage range |
190-520VAC (3-phase + N) @ 50% load 305-520VAC (3-phase) @ 100% load | |
|
Input frequency |
46Hz~54Hz/56Hz~64Hz | |
|
Power factor |
≥0.99@100%load | |
| Output | ||
|
Output voltage |
3×360/380/400/415VAC(3-phase + N) | |
|
AC voltage regulation |
±1% | |
|
Frequency (synchronous range) |
46Hz~54Hz/56Hz~64Hz | |
|
Frequency range (battery mode) |
50Hz±0.1Hz/60Hz±0.1Hz | |
|
current crest rating |
3:1 (Max) | |
|
Waveform balance |
≤2%THD (Linear Load)≤5%THD (Non-linear Load) | |
|
Transfer time |
0ms | |
|
Output waveform |
Pure Sine Wave | |
| Overload | Utility mode | 100-110%@10Min , 110-130%@1Min,>130%@1S |
| Battery mode | 100-110%@30S, 110-130%@10S,>130%@1S | |
|
Parallel capacity |
parallel up to 3 units | |
|
Efficiencies |
||
|
Mains mode |
95% | |
|
ECO mode |
98% | |
|
Battery mode |
93% | |
|
Battery |
||
|
Standard UPS |
Battery model | N/A |
| Number quantity | ||
| Charging time | ||
| Maximum charging current | ||
| Charging voltage | ||
|
External battery UPS |
Battery model | Depends on the applicant |
| Number of batteries | 16-20 | |
| Maximum charging current | 8A | |
| Charging voltage | 13.65V*N(N=16~20) | |
|
Display instructions |
||
|
LCD |
Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication | |
|
Physical performance |
||
|
Stardard UPS |
Size (MM) | N/A |
| Weight (KG) | ||
|
External battery UPS |
Size (MM) | 790*360*900 |
| Weight (KG) | 95 | |
|
Usage environment |
||
|
Humidity |
0-95%RH@0-40℃ (No condensation) | |
|
Noise |
< 60 dBA @ 1M | |
|
Control management |
||
|
Smart RS-232/USB |
Be in favor of Supports Windows®2000/2003/XP/Vista/2008, Windows®7/8, Linux,MAC | |
|
SNMP Optional SNMP |
Power management supports SNMP management and network management | |
|
Model |
3C3 80K(S) | |
|
Phase |
Three-input Three-output | |
|
Capacity |
80KVA 64KW | |
| Input | ||
|
Input voltage |
3×400VAC (3-phase + N) | |
|
Voltage range |
190-520VAC (3-phase + N) @ 50% load 305-520VAC (3-phase) @ 100% load | |
|
Input frequency |
46Hz~54Hz/56Hz~64Hz | |
|
Power factor |
≥0.99@100%load | |
| Output | ||
|
Output voltage |
3×360/380/400/415VAC(3-phase + N) | |
|
AC voltage regulation |
±1% | |
|
Frequency (synchronous range) |
46Hz~54Hz/56Hz~64Hz | |
|
Frequency range (battery mode) |
50Hz±0.1Hz/60Hz±0.1Hz | |
|
current crest rating |
3:1 (Max) | |
|
Waveform balance |
≤2%THD (Linear Load)≤5%THD (Non-linear Load) | |
|
Transfer time |
0ms | |
|
Output waveform |
Pure Sine Wave | |
| Overload | Utility mode | 100-110%@10Min , 110-130%@1Min,>130%@1S |
| Battery mode | 100-110%@30S, 110-130%@10S,>130%@1S | |
|
Parallel capacity |
parallel up to 3 units | |
|
Efficiencies |
||
|
Mains mode |
95% | |
|
ECO mode |
98% | |
|
Battery mode |
93% | |
|
Battery |
||
|
Standard UPS |
Battery model | N/A |
| Number quantity | ||
| Charging time | ||
| Maximum charging current | ||
| Charging voltage | ||
|
External battery UPS |
Battery model | Depends on the applicant |
| Number of batteries | 16-20 | |
| Maximum charging current | 8A | |
| Charging voltage | 13.65V*N(N=16~20) | |
|
Display instructions |
||
|
LCD |
Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication | |
|
Physical performance |
||
|
Stardard UPS |
Size (MM) | N/A |
| Weight (KG) | ||
|
External battery UPS |
Size (MM) | 790*360*900 |
| Weight (KG) | 150 | |
|
Usage environment |
||
|
Humidity |
0-95%RH@0-40℃ (No condensation) | |
|
Noise |
< 60 dBA @ 1M | |
|
Control management |
||
|
Smart RS-232/USB |
Be in favor of Supports Windows®2000/2003/XP/Vista/2008, Windows®7/8, Linux,MAC | |
|
SNMP Optional SNMP |
Power management supports SNMP management and network management | |
|
Model |
3C3 100-200K(S) | |
|
Phase |
Three-input Three-output | |
|
Capacity |
120-200KVA 96-160KW | |
| Input | ||
|
Input voltage |
3×400VAC (3-phase + N) | |
|
Voltage range |
190-520VAC (3-phase + N) @ 50% load 305-520VAC (3-phase) @ 100% load | |
|
Input frequency |
46Hz~54Hz/56Hz~64Hz | |
|
Power factor |
≥0.99@100%load | |
| Output | ||
|
Output voltage |
3×360/380/400/415VAC(3-phase + N) | |
|
AC voltage regulation |
±1% | |
|
Frequency (synchronous range) |
46Hz~54Hz/56Hz~64Hz | |
|
Frequency range (battery mode) |
50Hz±0.1Hz/60Hz±0.1Hz | |
|
current crest rating |
3:1 (Max) | |
|
Waveform balance |
≤2%THD (Linear Load)≤5%THD (Non-linear Load) | |
|
Transfer time |
0ms | |
|
Output waveform |
Pure Sine Wave | |
| Overload | Utility mode | 100-110%@10Min , 110-130%@1Min,>130%@1S |
| Battery mode | 100-110%@30S, 110-130%@10S,>130%@1S | |
|
Parallel capacity |
parallel up to 3 units | |
|
Efficiencies |
||
|
Mains mode |
95% | |
|
ECO mode |
98% | |
|
Battery mode |
93% | |
|
Battery |
||
|
Standard UPS |
Battery model | N/A |
| Number quantity | ||
| Charging time | ||
| Maximum charging current | ||
| Charging voltage | ||
|
External battery UPS |
Battery model | Depends on the applicant |
| Number of batteries | 16-20 | |
| Maximum charging current | 12-16A | |
| Charging voltage | 13.65V*N(N=16~20) | |
|
Display instructions |
||
|
LCD |
Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication | |
|
Physical performance |
||
|
Stardard UPS |
Size (MM) | N/A |
| Weight (KG) | ||
|
External battery UPS |
Size (MM) | - |
| Weight (KG) | - | |
|
Usage environment |
||
|
Humidity |
0-95%RH@0-40℃ (No condensation) | |
|
Noise |
< 60 dBA @ 1M | |
|
Control management |
||
|
Smart RS-232/USB |
Be in favor of Supports Windows®2000/2003/XP/Vista/2008, Windows®7/8, Linux,MAC | |
|
SNMP Optional SNMP |
Power management supports SNMP management and network management | |
